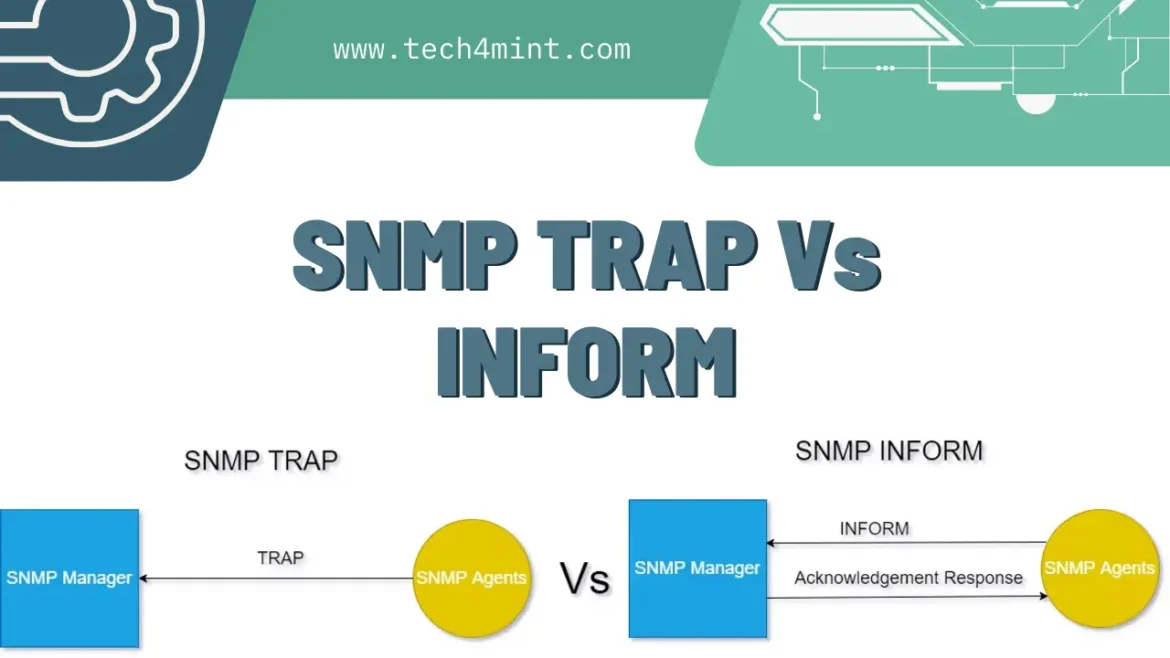

SNMP Trap Vs Inform

The SNMP Trap and Inform protocols are both part of the Simple Network Management Protocol (SNMP) suite, but they differ in terms of their communication processes and reliability mechanisms. In this article, we will discuss SNMP Trap Vs Inform. Let’s delve into the details of SNMP Trap and Inform protocols:

SNMP Trap Protocol:

1. Unacknowledged Notification:
   • SNMP traps are unacknowledged notifications sent by SNMP agents to the SNMP manager.
   • The agent generates and sends the trap to the manager without waiting for any acknowledgment.
2. Asynchronous Communication:
   • Traps operate asynchronously, meaning the agent sends the trap when a specific event occurs without waiting for a request from the manager.
3. Single Message:
   • The communication involves a single SNMP Trap Protocol Data Unit (PDU) sent from the agent to the manager.
4. No Retransmission:
   • Once a trap is sent, the agent does not retransmit it, even if the manager does not acknowledge receipt.
5. Limited Error Handling:
   • SNMP traps have limited error-handling capabilities. If the manager does not receive the trap, there is no built-in mechanism for retransmission or error correction.

SNMP Inform Protocol:

1. Acknowledged Notification:
   • SNMP informs are notifications sent by SNMP agents to the SNMP manager, but they include an acknowledgment mechanism.
   • The manager acknowledges the receipt of the inform, providing a level of confirmation.
2. Asynchronous Communication:
   • Similar to traps, informs operate asynchronously, allowing agents to send notifications without waiting for a request.
3. Two-Message Exchange:
   • The communication involves two SNMP Protocol Data Units (PDUs): an SNMP Inform PDU sent by the agent and an acknowledgment (SNMP Get-Response PDU) sent by the manager.
4. Retransmission Capability:
   • Informs can be retransmitted by the agent until the manager acknowledges receipt. This enhances reliability in case of communication issues.
5. Enhanced Error Handling:
   • SNMP informs offer improved error handling due to acknowledgment. If the acknowledgment is not received, the agent can take appropriate actions, such as retransmitting the inform.

Security Considerations:

• SNMP Trap Security:
  • SNMP traps may be less secure because they are sent without acknowledgment. There is no built-in mechanism to ensure the delivery of traps, and their content is not confirmed by the manager.
• SNMP Inform Security:
  • SNMP informs are more secure due to acknowledgment. The acknowledgment serves as a verification that the manager has received the notification, adding a layer of security to the communication.

In summary, SNMP Trap and Inform protocols differ in their reliability mechanisms, with informs providing a more secure and reliable means of asynchronous communication between SNMP agents and managers. The choice between traps and informs depends on the specific requirements of the network management scenario and the importance of acknowledgment and retransmission capabilities. Let’s differentiate SNMP Trap Vs Inform.

SNMP Trap Packet Description:

1. PDU Type:
   • SNMP Trap PDU
2. Header:
   • The SNMP trap PDU header contains information such as the SNMP version, community string, and the PDU type (trap).
3. Varbinds (Variable Bindings):
   • The varbinds contain pairs of object identifiers (OIDs) and their corresponding values.
   • These values represent the information or event that triggered the trap.
4. Enterprise OID:
   • Indicates the enterprise or organization associated with the trap. It is part of the varbinds.
5. Agent Address:
   • The IP address of the SNMP agent generating the trap.
6. Generic Trap Type:
   • Specifies the generic type of trap (e.g., linkUp, linkDown, coldStart, authenticationFailure).
7. Specific Trap Type:
   • Further specifies the trap type by providing additional information about the specific event.

SNMP Inform Packet Description:

1. PDU Type:
   • SNMP Inform PDU
2. Header:
   • The SNMP Inform PDU header includes information such as the SNMP version, community string, and the PDU type (inform).
3. Varbinds (Variable Bindings):
   • Similar to traps, the inform PDU contains varbinds with OID-value pairs.
   • These varbinds convey the information or event triggering the inform.
4. Enterprise OID:
   • Indicates the enterprise or organization associated with the inform. Like traps, it is part of the varbinds.
5. Agent Address:
   • Specifies the IP address of the SNMP agent generating the inform.
6. Response Request ID:
   • An identifier linking the inform with the corresponding acknowledgment (Get-Response PDU) that the manager is expected to send back.
7. Error Status and Index:
   • Provides information about the success or failure of the inform transmission, along with an index indicating the varbind causing an error (if any).

Common Elements:

1. Community String:
   • Both trap and inform packets include a community string for authentication purposes.
2. SNMP Version:
   • Indicates the version of SNMP being used (e.g., SNMPv1, SNMPv2c, SNMPv3).
3. Timestamp:
   • Timestamps may be included in both trap and inform packets to indicate when the event or condition occurred.
4. Security Parameters:
   • For SNMPv3, security parameters such as authentication and encryption may be present to enhance security.

Understanding the structure and content of SNMP trap and inform packets is crucial for effective network monitoring and management. It allows administrators to interpret the information conveyed by these PDUs and take appropriate actions in response to network events or conditions. I hope you enjoy our article about SNMP Trap Vs Inform.
